- FORM FACTOR: M-ATX
- CHIPSET AMD: B450 Chipset
- Full load: R5 5600/4500/3600
- Full speed M.2
- Stock: Pre-Order
- Brand: Maxsun
- Model: Challenger B450M
| Basic Information | |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
| Chipset | AMD B450 Chipset |
| Form Factor | M-ATX 220mm x 175mm |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
| Connector & Ports | |
| HDMI | 1x HDMI port |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| LAN Port (s) | Realtek RTL8111H 1G LAN |
| USB (s) | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 |
| Expansion Slots | |
| PCI | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
| Graphics | |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K 30Hz *Graphics specifications may vary between CPU types. |
| Memory | |
| Slots | 2 x DIMM |
| Supported Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports AMD A-XMP OC Supports Dual-Controller Dual-Channel mode |
| Type | DDR4 |
| Warranty Information | |
| Warranty | 3 Years |

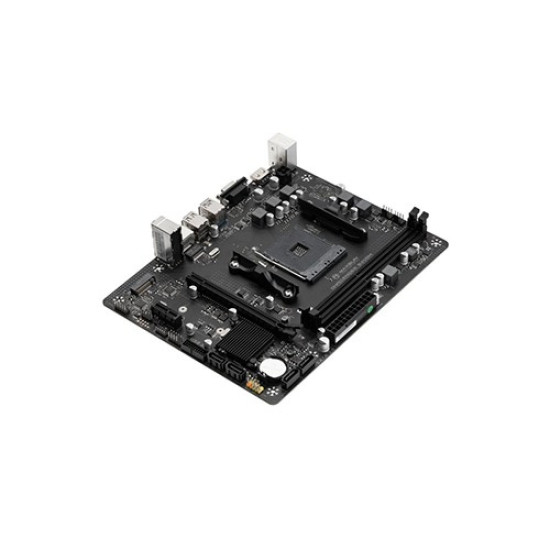

MAXSUN Challenger B450M AM4 Motherboard in Bangladesh
MAXSUN Challenger B450M AM4 Motherboard, now available at TechLand BD, designed to unleash the full potential of your AMD-based system. Powered by the AMD® B450 Chipset, this motherboard offers unparalleled performance and compatibility for gaming and productivity tasks. With support for a wide range of AMD Ryzen™ processors, including the latest Ryzen™ 5000 Series and Ryzen™ 4000 G-Series, this motherboard ensures you stay ahead of the curve. Experience seamless multitasking and smooth computing with dual DDR4 memory slots supporting up to 64GB of RAM, capable of reaching speeds of DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz with AMD® A-XMP OC support. Enjoy immersive visuals with onboard VGA and HDMI™ ports supporting resolutions up to 4K@30Hz, complemented by a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot for expandability. Storage options abound with an M.2 slot supporting PCIe 4.0 x4 mode and four SATA 6Gb/s ports, while RAID support ensures data integrity and reliability. Connect your peripherals effortlessly with front and rear USB ports, and stay connected with Realtek® RTL8111H 1G LAN for high-speed networking. Immerse yourself in high-definition audio with Realtek® ALC897 Codec delivering 5.1-Channel sound. Internal I/O options include various connectors for power, fans, audio, and storage, ensuring easy customization and expansion. Compatible with Windows® 11 64-bit and Windows® 10 64-bit, this motherboard guarantees a seamless operating experience. Compact yet feature-packed, the MAXSUN Challenger B450M AM4 Motherboard boasts a Micro-ATX form factor measuring 220mm x 180mm, making it suitable for a wide range of PC builds. Backed by a 3-year official warranty, this motherboard offers reliability and peace of mind for your computing needs.
